NO | Project No. | Item category | Parameter |
1 | Model NO. | GHA-T12 PLUS | |
2 | Safety Standard | UL/CUL/CCC | |

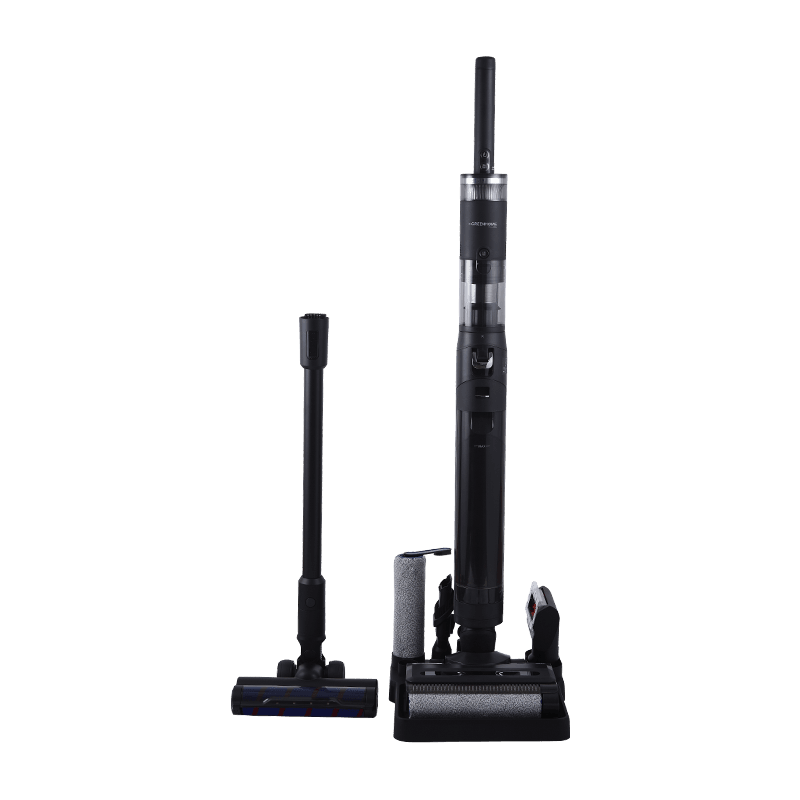

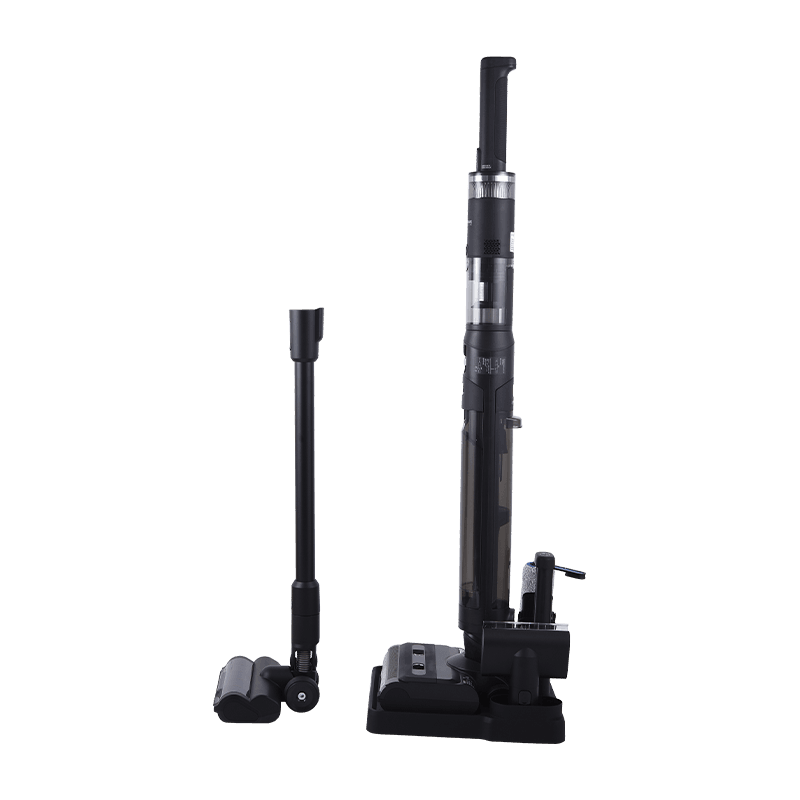

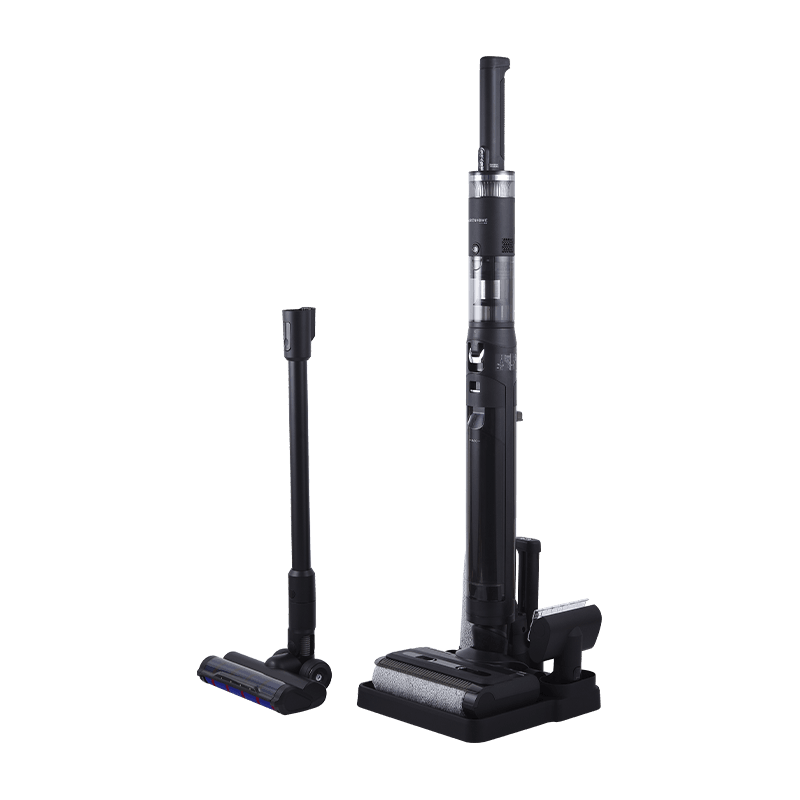

3 | Picture: | ||
4 | Usage scenario |
Floor Brick short pile carpet |
Floor Brick short pile carpet |
5 | 0~40℃ | ||
6 | Environment Claim | CP65 Phthalates/SCCP/NP TPCH 2004-12-EC |
|
7 | Rating Voltage | 21.6V | 21.6V |
8 | Rating Power /Current | 200W | 200W±10% |
9 | Motor type&specification | Main motor type | Y45 |
Main motor Specification | 21.6V 150W±7% | ||
Pump motor type | RS-555SHFVC2J2-4740RB | ||
Pump motor | 50W | ||
Pump motor type | DC18V | ||
Pump motor | 18V 6W | ||
10 | Charger specification | Type | ZD024M270110CN |
Rated input and output |
AC100-240V 0.8A DC 27V 1.0A |
||
Maximum charging | 1.2A | ||
No-load output voltage | 28.2-29.0V | ||
11 | Battery pack specification | Type | 18650 2600mAH |
Specification | 6 | ||
12 | Power Indicator | TFT | LED |
13 | Charging time | 2.5H | |
14 | Running time | Upscale | 20 |
low grade | 25 | ||
15 | Performance | Cleaning methods and materials | Absorbent fluff |
Suction power (floor brush end) | ≥20W±10% | ||
Vacuum degree (floor brush end) | Upscale ≥11KPA | ||
low grade ≥8.5KPA | |||
Floor dust removal ability | ≥85% | ||
16 | Cleaning ability | Dry garbage | Grade A (within 3 cycles) |
Wet garbage | Grade A (within 3 cycles) | ||
24 hours stubborn garbage | Grade A (within 40 cycles) or competing products | ||
17 | Cistern Volume | 500mL | |
18 | Single feed | 450mL | |
19 | Main motor life | 300H | |
20 | Net Weight /Gross Weight | 5.6kg | |
21 | Overall dimensions of the machine (length x width x height) (mm) | 260*210*1050 | |
22 | Package Size | 722X347X272 | |
23 | Loading q'ty 20'/40’/40H' | ||
24 | Machine safeguard | Temperature Protection | Y |
Overcurrent Protection | Y | ||
Low-voltage Protection | Y | ||
Overvoltage Protection | Y | ||
25 | No load speed of the roller | No load | 550±10% |
load | 500±10% | ||
26 | Motor safeguard | TCO | \ |
27 | Noise | The whole machine | <77dBA |
28 | Floor water return rate | ≥90% | |
29 | Application scenario function | Voice module | Y |
Brush drying | Y | ||
Water electrolysis module | Y |
